Product Details:
Payment & Shipping Terms:
|
| Name: | Stainless Steel Crimped Wire Mesh | Material: | Stainless Steel Wire, High Carbon Steel Wire |
|---|---|---|---|
| Width: | 0.6-8m | Length: | 30m Or Customized |
| Weave Style: | Plain Crimped/Intermediate Crimped | Technique: | Woven,Welded Mesh |
| Wire Diameter: | 0.025-1mm | Hole Shape: | Square Hole,rectangle |
| Application: | Woven Wire Mesh,Barbecue Wire Mesh,filtration | Type: | Weave Wire Mesh,Crimped Wire Mesh,Welded Mesh,Wire Cloth,Stainless Steel Wire Mesh |
| Product Name: | Stainless Steel Crimped Wire Mesh,plain Crimped Wire Mesh,barbecue Grill Wire Mesh | Color: | Silver,as Your Requirements,black,Black/green/whilte,white |
| Surface Treatment: | Hot Dipped Galvanized,Polished,Electroplate,powder Coated | Feature: | Corrosion Resistance,durable,heat Resistance,anti-corrosion& Alkail&acid,Structure Firm And Durable |
| High Light: | anti Corrosion Crimped Wire Mesh,304L Crimped Wire Mesh,12.7mm heavy duty metal screen mesh |
||
For all of mining, aggregate, asphalt mixing and road construction industries, every cent saved from high-quality production, fast parts changes and a longer part wear life will be eventually converted into hard profits and real cost reduction of companies. As the most important part of vibrating screens, a set of high-quality wire cloth with high accuracy, long wear life and high anti-impact is the foundation of production quality assurance in all industries above.
|
Name |
High Strength Toughness Weave Stainless Steel Crimped Wire Mesh |
|
High carbon steel: |
Manganese steel,high carbon steel 65Mn |
|
Wire diameter |
0.8mm-12.7mm,Our finished wire is inspected by third party SGS,Tolerance+_0.03mm . |
|
Aperture/Opening |
2mm to 100mm,tolerance +-3% |
This specification is also referred to as "Vibro Type Weave". Efficient and long wearing in a variety of applications Providing a level, smooth surface, the Smooth weave employs a type of rigidity interlocked crimp that insures maintenance of accurate, uniform openings. When used in the correct application, because of the level weave, there is considerable reduction of friction from material passing over the screen and, in many cases, far less wear from abrasion than in screens made with surface crimps.
For light to medium wire in relation to screen opening size. Wire is locked in place for long wear and accurate screen openings for the life of the screen. This specification is also referred to as "Scalping Weave". Generally used in extremely heavy screen cloths and those with relatively small openings.
Improves material flow with flatter surface than other weaves. Lock
weave maintains accurate openings. Also called "Smooth-Top". Most
efficient weave for heavy-duty screens when ratio between width and wire diameter permits its use. As a general rule, opening width should be at least 5 times the wire diameter. It is extremely durable because each wire is locked in place to maintain accuracy of openings for the life of the screen.
Long openings will keep sticky or wet material flowing freely. Weave holds wires securely yet permits slight vibration to keep openings clear. This specification is often called "Triple Shoot".
We can meet with the bulk orders demands on time.
The screens are designed to bear heavy loads
Highly resistant to vibrations and shocks
These are highly damage resistant
Coated for long term protection against corrosion
Durable in quality, these screens have excellent dimensional tolerance
Stringently tested for their finishing and strength
Acclaimed among clients for their excellent abrasion resistance
|
NO |
Grade |
chemical Composition |
|||
|
C |
Ni |
Mn |
Cr |
||
|
1 |
304 |
≤0.08 |
8.0-11.0 |
≤2.0 |
18.0-20.0 |
|
2 |
321 |
≤0.08 |
9.0-12.0 |
≤2.0 |
17.0-19.0 |
|
3 |
316 |
≤0.08 |
10.0-14.0 |
≤2.0 |
16.0-18.5 |
|
4 |
2205 |
≤0.03 |
4.5-6.5 |
2.5-3.5 |
21.0-24.0 |
|
5 |
2507 |
≤0.03 |
6-8 |
≤1.2 |
24-26 |
1.We could make small samples for customer before the order according to your request .
2..If client come to visit us ,we shall pick you up at beijing airport ,arrange hotels,and send you return to the airport on time .
3.We shall attach importance to your feedback to our products or company .

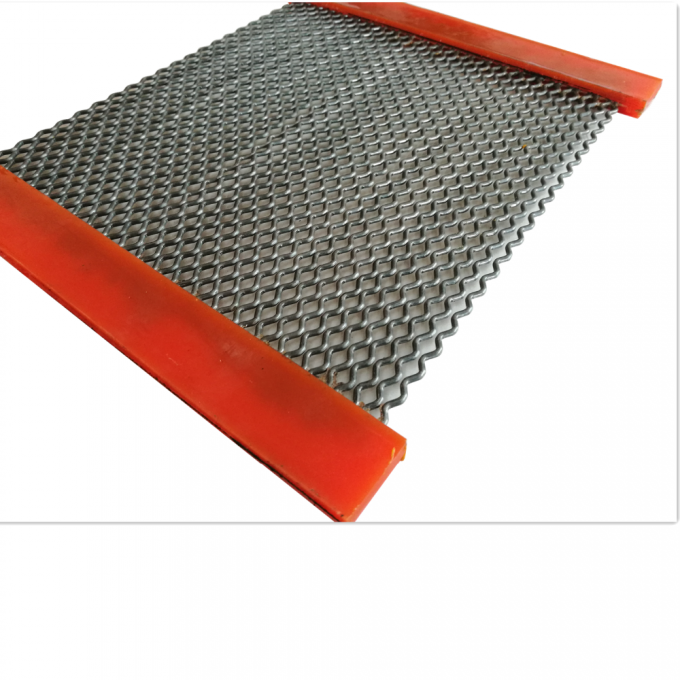

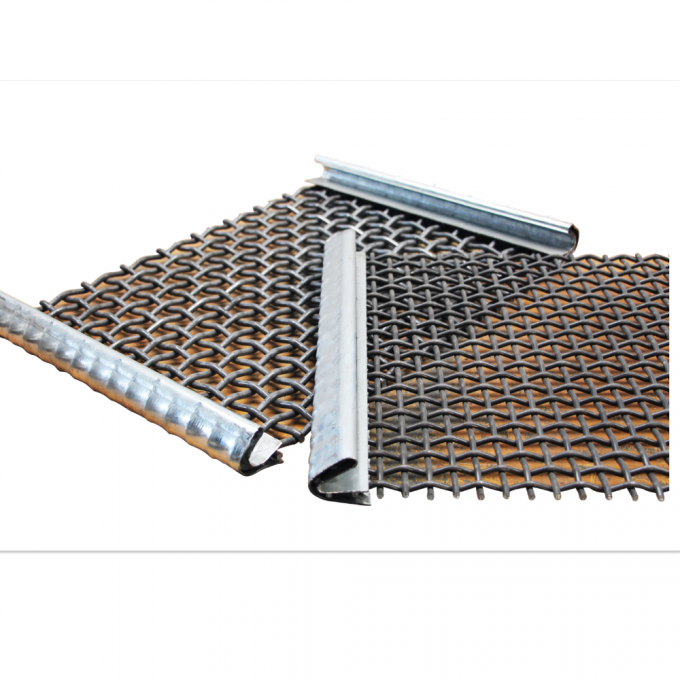

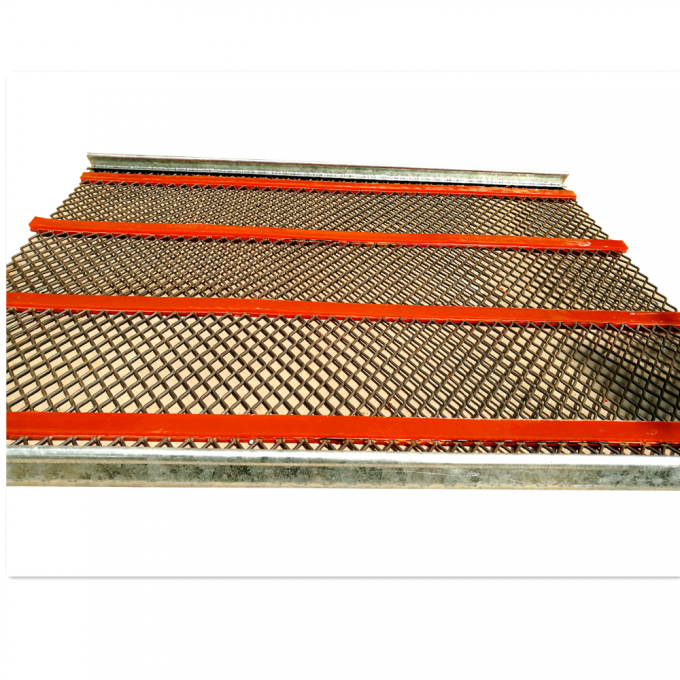

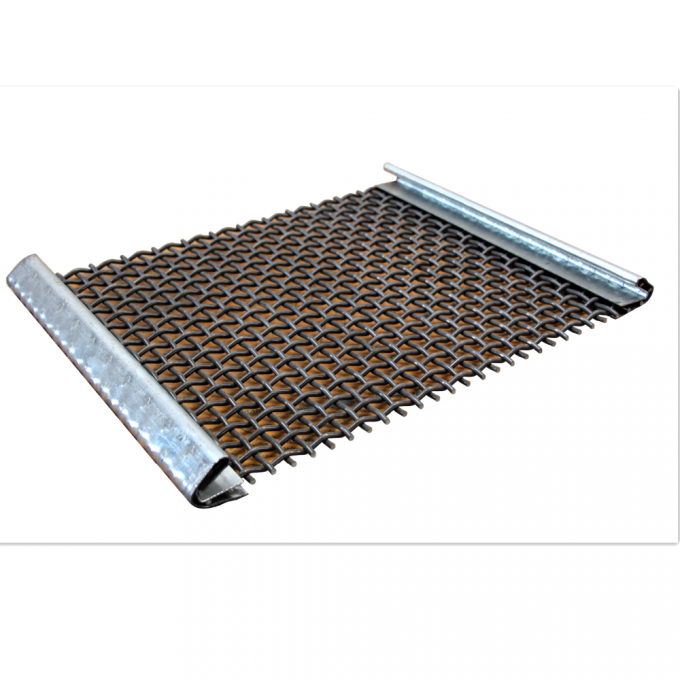

Crimped Wire Mesh is made by carbon iron wire, galvanized steel wire or stainless steel wire.
Weaving Patterns: Weaving after crimping.
This kind of wire mesh is identified from a wire crimped only in the points of intersection, before weaving. Crimped wire mesh is only made on request and the wire used may be round or square.
Product Features:

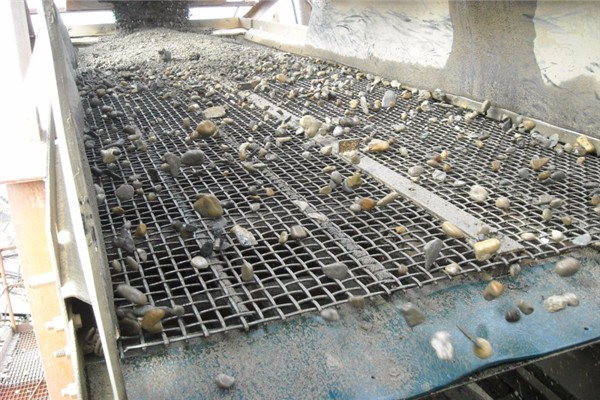

Crimped woven wire mesh offers great dimensional strength and stability, great resistance to abrasion, uniform openings and excellent anti-corrosion. It is usually used as quarry screen in mine, quarry and other industrial fields as sieving, grading and separating screening materials.
Basic parameters:
Aperture width: 10 - 120mm in the case of multi-notch meshes and 4 - 40mm in the case of single-notch meshes.
Wire diameter: 1.0 - 5.5mm.
Mesh width: up to 2000mm.
Crimped wire mesh is supplied in the form of sheets.
