Product Details:
Payment & Shipping Terms:
|
| Name: | Stainless Steel Crimped Wire Mesh | Material: | Steel Wire 316L, Copper, Ss 304 |
|---|---|---|---|
| Technique: | Woven,Welded Mesh | Hole Shape: | Square Hole,rectangle |
| Weave Style: | Plain Weave | Type: | Crimped Wire Mesh |
| Wire Diameter: | 0.7mm-6.0mm | Width: | 2m Or Customized |
| Length: | 1-30m Or Customized | Mesh Count: | 1-150 Mesh |
| Color: | Silver,black,Black/green/white As Your Requirements | Application: | Woven Wire Mesh,Filters,Screen,Barbecue Wire Mesh,filtration |
| Surface Treatment: | Hot Dipped Galvanized,Polished,Electroplate,powder Coated | Aperture: | 8-30mm,6.27-0.0385mm,0.1-3mm,costomized |
| High Light: | Stainless Steel Crimped Wire Mesh,12.7mm Crimped Wire Mesh,304 heavy duty wire mesh screen |
||
304 Stainless Steel 12.7mm Crimped Heavy Duty Wire Mesh Screen
|
Product Name |
Vibrating Screen Mesh |
|
Material |

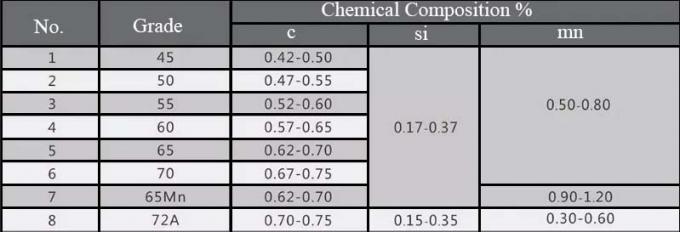

65Mn, 45#, 50#, 55#, 60#, 70#, 72A |
|
Wire diameter: |
0.8mm-12.7mm |
|
Mesh hole |
2mm to 100mm |
|
International Certification |
SGS standard,ISO9001:2008 |
High Strength Toughness Weave Stainless Steel Crimped Wire Mesh
For all of mining, aggregate, asphalt mixing and road construction industries, every cent saved from high-quality production, fast parts changes and a longer part wear life will be eventually converted into hard profits and real cost reduction of companies. As the most important part of vibrating screens, a set of high-quality wire cloth with high accuracy, long wear life and high anti-impact is the foundation of production quality assurance in all industries above.
|
Name |
High Strength Toughness Weave Stainless Steel Crimped Wire Mesh |
|
High carbon steel: |
Manganese steel,high carbon steel 65Mn |
|
Wire diameter |
0.8mm-12.7mm,Our finished wire is inspected by third party SGS,Tolerance+_0.03mm . |
|
Aperture/Opening |
2mm to 100mm,tolerance +-3% |
1. Angle: 30 degrees, 45 degrees,60 degrees
2. Crimped Wire Mesh Shape: v-shaped, u-shaped
3. Hook Type: C or U hook for 30°-180°
4. Weaving Type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
5. Mesh Type: Square, rectangular slot, long slot.
6. Surface Treatment: Anti rust oil painted.
7. Edge Preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.
65Mn Woven vibrating screen mesh for stone quarry
Applications
Applies to vibrating screens or stone crusher for sieving of mine and aggregates, as well as asphalt mixer plant in road building.It also can be used in filtering and protection of petroleum, chemical industry and ocean industries with acid and alkali environment, making glass reinforce, various baskets for life and industrial use, art crafts, baskets used in the kitchen and the refrigerator.
Packing & Delivery
Material : iron, carton steel,copper.stainless steel 201,304,316L.
Weave:Copper plain weave crimped wire mesh is woven using wire crimped prior to weaving.
The crimps are made at the points the shute and warp wires intersect which secures the wire,thereby stabilizing the cloth and preventing the wire from inermediate crimp.
|
Mesh(Inch) |
Wire Gauge(SWG) |
Aperture (mm) |
|
3x3 |
14 |
6.27 |
|
4x4 |
16 |
4.27 |
|
5x5 |
18 |
3.86 |
|
6x6 |
18 |
3.04 |
|
8x8 |
20 |
2.26 |
|
10x10 |
20 |
1.63 |
|
20x20 |
30 |
0.95 |
|
30x30 |
34 |
0.61 |
|
40x40 |
36 |
0.44 |
|
50x50 |
38 |
0.36 |
|
60x60 |
40 |
0.3 |
|
80x80 |
42 |
0.21 |
|
100x100 |
44 |
0.172 |
|
120x120 |
44 |
0.13 |
|
150x150 |
46 |
0.108 |
|
160x160 |
46 |
0.097 |
|
180x180 |
47 |
0.09 |
|
200x200 |
47 |
0.077 |
|
250x250 |
48 |
0.061 |
|
280x280 |
49 |
0.06 |
|
300x300 |
49 |
0.054 |
|
350x350 |
49 |
0.042 |
|
400x400 |
49 |
0.0385 |
|
500x500 |
50 |
0.0273 |
It is widely used in bbq baking grill net, filtering and protection of petroleum, chemical industry and ocean industries with acid and alkali environment.
It is also used for making glass reinforcer, various baskets for life and industrial use, art crafts, baskets used in the kitchen and refrigerator
crimped woven by special craft , the mesh surface smooth, firm structure, strong impact resistance, wear-resistant, low prices, mesh opening can long time to maintain uniform,at the same time , high temperature resistant ,corrosion resistance, acid and alkali resistance ,also long time work.
Stainless steel/ copper bbq grill net crimped wire mesh Weaving patterns
pre-crimping before eaving, plain crimped, two-way separated wave crimped , locked crimped, flat-topped crimped , two-way crimped , one-way separated wave crimped
1) 40 Years Experience
More than 40 years wire mesh production experience.
2) Quality Garantee
Each order is tested and controlled strictly according to the higher standard than international level.
3) Installation & Accessories
We could provide professional wire mesh solutions & accessories for you.
Anping County Wudang Trading Co., Ltd a high quality China manufacturer of woven metal wire mesh for the architectural and industrial industries. It can be used as external facades, balustrades, staircase cladding & screens, sun screens & ceiling, interiors, metal curtains, room dividers, etc.
We can weave high quality, distinctive architectural mesh that is perfectly tailored to your project needs. With a little background information on types of metal, wire diameter, pitch and crimping, you can easily communicate with us on exactly what you need to make your mesh installation work perfectly with the rest of your design. Whether you are looking for a simple or custom design, large or small, we appreciate the opportunity to be a part of your next project!
As a manufacturer of wire mesh with nearly half a century history, SHUOLONG have enough capacity to control the quality for each order. And at the same time, we can own the direct cost for wire mesh products. We just do wire mesh, we are professional!
Pallet,paper tube inside+ wodden box +plastic bag +,carton,water proof paper,then in Poly-wood carton
1. who are we?
We are based in Hebei, China, start from 2012,sell to South America(20.00%),North America(20.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),Central America(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Mid East(5.00%),Africa(5.00%),South Asia(5.00%),Western Europe(3.00%),Oceania(3.00%),Southern Europe(2.00%),Domestic Market(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Filter element,filter screen,mental screen,mental basket, custom made of a variety of wire mesh etc.
4. why should you buy from us not from other suppliers?
Applying state of the art quality techniques to produce parts that exceed customer specifications Offering flexible scheduling to
Meet the customer delivery requirements
Providing competitive pricing Providing unparalleled customer service
Striving for continuous improvement by implementing Lean manufacturing principles
5. what services can we provide?
Factory direct sale
Quality requirements
Timely delivery guaranteed
Equitable price
Thorough and satisfactory in service
