Anping Wushuang Trade Co., Ltd
Home ProductsBullet Proof Window Screen

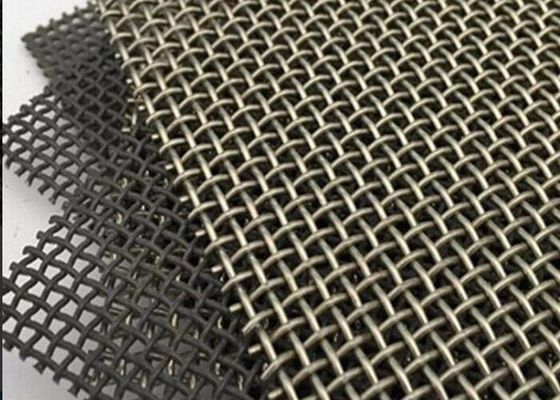

Diamond 0.3mm Bullet Proof Window Screen 20-150g/M2 Dutch Weave

China Anping Wushuang Trade Co., Ltd certification
The Window Screen is good, It's hot slaes in our area, And it looks really beautiful. High quality !!

—— Van Voorthuizen

That's why i like cooperation with these old factories, 10 years produce experiences. Yes, they are professional and efficiency. Good work!

—— Jack Sameuls

I'm Online Chat Now

Diamond 0.3mm Bullet Proof Window Screen 20-150g/M2 Dutch Weave

Diamond 0.3mm Bullet Proof Window Screen 20-150g/M2 Dutch Weave
Diamond 0.3mm Bullet Proof Window Screen 20-150g/M2 Dutch Weave

Large Image :  Diamond 0.3mm Bullet Proof Window Screen 20-150g/M2 Dutch Weave

Product Details:
Place of Origin: Hebei, China, Hebei,China (Mainland)
Model Number: wushuang002
Payment & Shipping Terms:
Minimum Order Quantity: $2.00/Square Meter | 1 Square Meter (Min. Order)
Price: negotiable
Packaging Details: Carton board inside and Plywood case outside.
Delivery Time: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Payment Terms: L/C, D/A, D/P, T/T, T/T, Western Union, MoneyGram
Supply Ability: 8000 square meters per month
Detailed Product Description
Name: Bullet Proof Window Screen Color: Black And White Dark Gray Light Gray
Material: Stainless Steel,304, 316 Width: 1, 1.1, 1.2, 1.3, 1.5m
Length: 2--31.5m Mesh Size: 11x11mesh, Customers's Requirement, 22X22 30x30, 0.8mm(11x11) 0.7mm(12x12), Etc
Packing: Wooden Box,water Proof Plastic Bags Outside, With Paper Tube Inside, Carton, Waterproof Paper, As Request Feature: Anti-mosquitio, Protect Your House From Theft And Bullet, Mesh Uniform, Corrosion Prevention, Acidand Alkali Etc
Type: Door & Window Screens, Linear Application: Anti Insect, Sliding Windows, Protecting Mesh, Residential, Insect Screen
Surface Treatment: Electrostatic Powder Spraying, Natural, Metal, Epoxy Resin Paint, Powder Coating Wire Diameter: 0.8mm, 0.7mm-1.0mm, 0.08mm To 0.5mm, BWG34 Etc, 0.08~0.3mm/ As Your Requirment
Weave Type: Plain Weave, Plain Weave And Inter Weave, Plain Woven Weight: 110g-120g/m2, 15kg, 110g 120g, 100-150g /sqm, 20-150g/m2
Advantage: Competitive Price, Anti-rats, Unity-structure, Anti-theft, Anti-flies
High Light:

Diamond 0.3mm Bullet Proof Window Screen

,

20g/m2 Bullet Proof Window Screen

,

150g/m2 steel mesh window screen

Powder Coated Stainless Steel Anti Mosquito Security screen Bullet Proof Window Screen



Bullet Proof Window Screen introduction



Bullet Proof Window Screen, it not only keep insects and bugs out, the most important is tough enough to endure hard attack, such as hacking knife, big stone, even bullet, more attactive is the strong protection not affect you to enjoy the outside fresh air, and good scenery , because it is ventilated and visiable. so such mesh is popular in Austrilia and Europen due to its beautiful looking, perfect flat and strong protection.



Bullet Proof Window Screen specifications


Material: 302 304 304L 316 316L
Weaving Pattern: Plain weave, Twill weave and Dutch.
Characters: acid-resistance, alkali-resistance, heat-resistance, Tension strength-resistance.
Uses: Sieving and filtering in the acid and alkali conditions. Used as mud mesh in the oil industry, Sieves and filter mesh in the chemical fiber industry, acid pickling mesh in the galvanization industry.

Mesh/Inch Wire Gauge(SWG) Aperture in mm
3mesh x 3mesh 14 6.27
4mesh x 4mesh 16 4.27
5mesh x 5mesh 18 3.86
6mesh x 6mesh 18 3.04
8mesh x 8mesh 20 2.26
10mesh x 10mesh 20 1.63
20mesh x 20mesh 30 0.95
30mesh x 30mesh 34 0.61
40mesh x 40mesh 36 0.44
50mesh x 50mesh 38 0.36
60mesh x 60mesh 40 0.3
80mesh x 80mesh 42 0.21
100mesh x 100mesh 44 0.172
120mesh x 120mesh 44 0.13
150mesh x 150mesh 46 0.108
160mesh x 160mesh 46 0.097
180mesh x 180mesh 47 0.09
200mesh x 200mesh 47 0.077
250mesh x 250mesh 48 0.061
280mesh x 280mesh 49 0.06
300mesh x 300mesh 49 0.054
350mesh x 350mesh 49 0.042
400mesh x 400mesh 50 0.0385
Roll width: 2'-8'



Feature of Bullet Proof Window Screen


Prevent from mosquitoes, flies and other insects.Resist the thieves and intruders.Fire proof and knife proof.Long life and durable.Easy to clean and install.Resistance for corrosion and rust.Adjust for harsh environments such as hurricane or storm.Clear from inside and vague from outside.Excellent for fresh air flowing.

  • Super light & safety protection

Bullet Proof Window Screen have the ultimate of light transmission and safety Characteristics,it provide you security and protection,and also bring you the best visual effects.stainless steel woven mesh widely used in all kinds of doors and Windows,its biggest role is to provide security protection for you and your family, even it been called "bulletproof mesh".

  • Harmony and strength


Raw materials we use stainless steel 304(0 cr18ni9), 316 (0 cr17ni12mo2), 316L (carbon≤0.030).material Wire diameter 0.8 mm ,production use advanced fully automatic CNC heavy duty weaving equipment,machining accuracy ±0.01 mm,The mesh alignment very precise,no visual stripe even you look at the mesh under sunshine, flatness ≤3°.all that makes the stainless steel woven mesh have a good safety, corrosion resistance and perfect visual effect.

  • Long service life


For the surface treatment,we use automatic spray assembly line to do the powder coating,with the addition of Aksu and Jotun outdoor spraying powder,the final product color very beautiful and adhesion strong, with super weatherability,drastically increase the product service life.



Product application



Bullet Proof Window Screen can prevent insects, so it is ideal for porch, window and door applications. It also can be applied on the high-temperature areas and humid environment, for the merits of heat-resistance, moister-resistance and anti-corrosion



Diamond 0.3mm Bullet Proof Window Screen 20-150g/M2 Dutch Weave 0

Production Process



Stainless steel wire
Stainless steel 304(0Cr18Ni9),316(0Cr17Ni12Mo2),316L(C≤0.030)

  • Woven

The wire is made to the mesh by woven machine

  • Wire mesh rolls

The stainless steel wire was woven into the wire mesh rolls

  • Stretch

Stretch the wire mesh , in order to make it smooth



Company Information



Anping county wushang square wire mesh manufacturing co., LTD. Is located in the famous "China wire mesh town", "China wire mesh production base "-- hebei province anping county city, adjacent to China anping wire mesh production base and China anping wire mesh world. It is 250km away from Beijing Capital Airport and 200km away from Tianjin Port. The company's main stainless steel net, 201, 304 stainless steel steel net, stainless steel welding net, stainless steel filter, diamond net, stainless steel diamond net, anti-theft screen diamond net, anti-mosquito diamond net of various materials, models of screen and other products. Abundant inventory, complete models, advanced production equipment.

Anpingxian one like trade co., LTD., products widely used in petroleum, coal, chemical industry, construction, textile, medicine, aviation, aerospace, expressway, railway, gardens, water conservancy engineering, slope protection, fisheries, aquaculture, metallurgical machinery and other fields, with reliable quality and satisfactory after-sales service well received by new and old customers.

We have been taking "excellent quality, timely delivery, reasonable price, thoughtful service" for the purpose of our customers. And is in line with the "quality of survival, reputation and development" of the production principle, won the majority of new and old customers. The company has excellent equipment, advanced technology, scientific internal management and sound quality management system. Our company is based on sincerity and has a good reputation, which is trusted by new and old customers. Has a complete and scientific quality management system. Anping County Anshang square screen manufacturing Co., Ltd. integrity, strength and product quality to obtain the industry's praise.

Anping County Wushuang Trading Co., Ltd. welcome friends from all walks of life to visit, guidance and business negotiations.



Why Choose Us



1 Rich experience production team



Our company was established in 2009 and it has 5000 m2 production workshop, Hundreds of skilled technicians, Dozens of production and processing lines. We have many years of experience in the wire mesh field.



2 Professional quality inspection system


We have a strict quality inspection system and a professional testing team, we guarantee product quality



3 Perfect service system


24 hours on-line service ,Free samples if stocked, Quality problem we could accept the products return
Competitive price with superior higher quality products,Professional team to solve all your questions



Quality Inspection



We have professional team to produce the Stainless Steel Window Screen ,before sending the goods, before the delivery the material ,mesh acounts ,wire diameter and other items of the product are tested,we can guarantee the high quality products.



Diamond 0.3mm Bullet Proof Window Screen 20-150g/M2 Dutch Weave 1

Packing Detail:



  • Packed in rolls, then wrapped with waterproof paper.
  • Kraft paper and carton.
  • Special packing is arranged if necessary.



Diamond 0.3mm Bullet Proof Window Screen 20-150g/M2 Dutch Weave 2
