Product Details:
Payment & Shipping Terms:
|
| Name: | Stainless Steel Woven Wire Mesh | Technique: | Woven,Welded Mesh |
|---|---|---|---|
| Application: | Woven Wire Mesh,Filters,Screen,Decorative Wire Mesh,Protecting Mesh | Type: | Weave Wire Mesh,Wire Cloth,Crimped Wire Mesh,Rope Mesh,Welded Mesh |
| Material: | Stainless Steel Wire,316,304,copper,plain Steel Galvanized | Weave Style: | Plain Weave,twill Weave,Plain/Twill Weave,plain/twill/dutch Weave,Dutch Weave |
| Product Name: | 5 Micron 316L 2500 Mesh Stainless Steel Woven Wire Mesh,Stainless Steel Architectural Woven Wire Mesh,Square 4X4 Woven Flour 100 Micron Stainless Steel Wire Mesh,Metal Woven Mesh,304 316L Plain SS Stainless Steel Woven Wire Mesh Disc. | Color: | Silver,black,white |
| Wire Diameter: | Requirement,0.6*1.75mm,0.025-1mm,0.7mm-6.0mm,0.010 To 1.20mm | Hole Shape: | Square Hole,Round |
| Length: | 1-30m,30m,30m/roll 50m/roll Or As Required,30m Per Roll Or As Required,30m/roll 50m/roll | Usage: | Liquid Filter,chmical Industry,oil,filtration,filtering And Sieveing |
| Width: | 1m,Usually1M,1.2m Or Others,0.5m-3m Or Customized,0.5-2m | Feature: | Corrosion Resistance,Anti-corrosion,alkali-resisting Etc,Flexibility,Easily Assembled |
| Mesh Count: | 1-24 Mesh,2-650mesh,1-400mesh,2-600,1x1-635x635mesh/inch | Surface Treatment: | Hot Dipped Galvanized,Untreatment,Anodized,Polished |
| Mesh: | 1-635mesh,3-500 MESH,1-2300 | Sample: | Avaliable,According To Size |
| Weight: | 4.5kg/square Meter,3.36kg/m2,2-17kg | ||
| High Light: | Corrugated Woven Wire Mesh,1m Woven Wire Mesh,30m stainless steel gauze mesh |
||

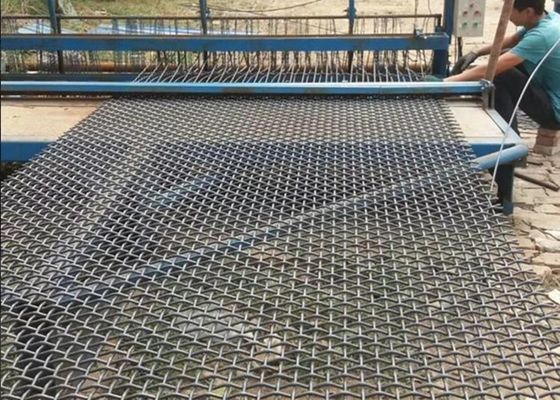

square hole stainless steel crimped wire mesh
Material: NO MAGNET NO NICKEL, AISI202, AISI302, AISI304, AISI 304 L, AISI 316, AISI 316 L, AISI317, 321 and 430 etc.
1. Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.
stainless steel wire filter mesh normal mesh sizes:
plain weave: 0.5X0.5mesh to 635X635 mesh;
twill weave:20x20mesh to 400x400mesh;
plain dutch weave:10X64mesh to 80X700mesh;
twill dutch weave:20x250mesh to 400X2800mesh;
reversed dutch weave: 48x10mesh to 720x150mesh.
Wire diameter:1.8mm-0.025mm
Roll width:0.9144m,1.0m,1.22m,1.524m,1.83m,etc. any width available at request.
Roll length:30m or 50m,any length available at request.
304 Stainless Steel Wire Cloth is the most common stainless alloy used in wire weaving. Excellent corrosion properties and can withstand temperatures of 1100 Degrees F.
304L Stainless Steel Wire Cloth has similar properties as 304ss but lower carbon content to permit better welding.
316 Stainless Steel Wire Cloth has similar properties to 304ss but is stabilized by the addition of Molybdenum for increased resistance to chemical corrosion.
316L Stainless Steel Wire Cloth has similar properties as 316ss but lower carbon content to permit better welding.
Stainless Steel Wire Mesh is one of the most popular wire mesh . Stainless steel is used in wire mesh where both the properties of steel and resistance to staining and corrosion (by adding chromium, nickel and other metals) are required. The amounts of carbon, chromium, nickel, and other metals affect other characteristics including corrosion resistance, and ease of welding and forming.which has earned us a huge clientele and highly regarded for being made from superior quality of stainless steel. It is dimensionally accurate and meant for decreasing the down time of filtration considerably, owing to its mesh size. Our product is in sync with the prevalent market trends.
Useful for cement industries
Useful for stone crushing industries
Durable
These are offered in meshes ranging from 1 to 600 and are used in filtering, shifting and grading of chemicals, sugar graders, powders, minerals, and pigments.
Material: AISI302, 304,316,316L,310S,410,430,904L,2205,2507,etc
| Stainless Steel Wire Mesh | |||||
| Mesh/inch | Wire Diameter (mm) |
Aperture (mm) |
Mesh/inch | Wire diameter (mm) |
Aperture (mm) |
| 2mesh | 1.80 | 10.90 | 60mesh | 0.15 | 0.273 |
| 6mesh | 0.80 | 3.433 | 100mesh | 0.10 | 0.154 |
| 10mesh | 0.55 | 1.990 | 140mesh | 0.07 | 0.111 |
| 12mesh | 0.50 | 1.616 | 150mesh | 0.065 | 0.104 |
| 20mesh | 0.30 | 0.970 | 250mesh | 0.04 | 0.061 |
| 26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 |
| 30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 |
| 40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 |
|
Width of Stainless Steel Wire Mesh: 0.6m-8m Production Flow
|
|||||
HEBEI MAISHI do strictly tested before the goods dispatched from our factory to ensure their quality. Make sure customers get perfect quality.
Inside the roll with "paper tube" to reduce the pressure while loading; Then wrapped with "plastic film" as well as the "woven bag" on the finished roll, Final loaded in the strong wooden case or as customers' requirement
Payment:
100%T/T in advance if order amount less thanUSD10000.00, 30%paid in advance and 70%paid before shipment if order amount more than USD10000.00.
L/C payment is workable.
Any other payment term can be negotiatory
Anping County Wushuang Trading Co., Ltd Located in wire mesh hometown of China——Anping County. It is a comprehensive enterprise of manufacturing, marketing, importing and exporting. We have advanced equipment and professional R&D team.Main products are different kinds of metal wire mesh and related. Main products are different kinds of metal wire mesh and related deep processing filter mesh. Such as stainless steel wire mesh, copper wire mesh, nickel wire mesh, monel wire mesh, Inconel wire mesh,Hastelloy wire mesh, Nichrome wire mesh, Feral wire mesh, titanium wire mesh, mesh filter tube, mesh filter cap, mesh filter disc and so on.
Area: 99000m2
No. of Employees: 200+ people
No. of QA/QC Inspector(s): 12 people
Export Markets: Europe, South America, Australian, North America, Asia etc.
Annual Revenue: USD USD 10.678.360,00
Certificates: ISO9001 certificate, SGS certificate
The company's products with complete specifications and excellent quality are widely used in coal mining, environmental protection, transportation, construction, petroleum, chemical, construction, textile, medicine, aviation, aerospace and other industries."Adhere to science and technology is the fundamental life of the enterprise, pay attention to technology research and development product innovation, always strict quality, let the customer" is a constant business philosophy, is the pursuit of all our staff, is the cornerstone of our common development with customers.We hope to sincerely cooperate with foreign merchants,mutual benefit, to establish a good business and trade relations, and through our sincere cooperation, we leave a good impression on each other, a brilliancause.
1> 24 hours online service.
2> Best pre-sale and after-sale service.
3> We will choose the shipping company with good service and low price for you.
4> Loading the goods: We will track all the way, to ensure product safety, quick to arrive at the designated port.
5> Arrival of the goods: We will provide installation instructions and subsequent technical guidance.
6> to be able to provide various products at any time.
~Q1~. What is your terms of packing?
~A~: Generally, we pack our goods in
If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
~Q2~. What is your terms of payment?
~A~: T/T: 30% of the total amount should be paid after the order confirmed as down payment,
and the balance to be paid before shipping the goods out of our factory. (We will send you
goods pictures before youpay the balance)
~Q3~. What is your terms of delivery?
~A~: EXW, FOB, CFR, CIF, DDU.
~Q4~. How about your delivery time?
~A~: Generally, it will take 5 to 10 days after receiving your advance payment. The specific
delivery time depends
on the items and the quantity of your order.
~Q5~. Can you produce according to the samples?
~A~: Yes, we can produce by your samples or technical drawings. We can build the molds
and fixtures.
